Statics

Forces & Equilibrium

Statics is the study of objects that are either at rest or moving at a constant velocity. In both cases, the key idea is that there is no acceleration. According to Newton’s Second Law, this means the net force acting on the object must be zero.

1. Understanding Forces

A force is any interaction that can change the motion of an object. Forces are vector quantities, meaning they have both:

• Magnitude – how strong the force is
• Direction – the way the force is applied

Forces are measured in Newtons (N).

Some of the most common forces in statics include:

• Weight (W) – the force of gravity acting on an object (always downward)
• Normal Force (N) – the support force from a surface, acting perpendicular to it
• Tension (T) – the pulling force transmitted through a rope or cable
• Friction (F) – a force that resists motion between surfaces

Each of these forces behaves in a predictable way, which allows engineers to model and solve problems accurately.

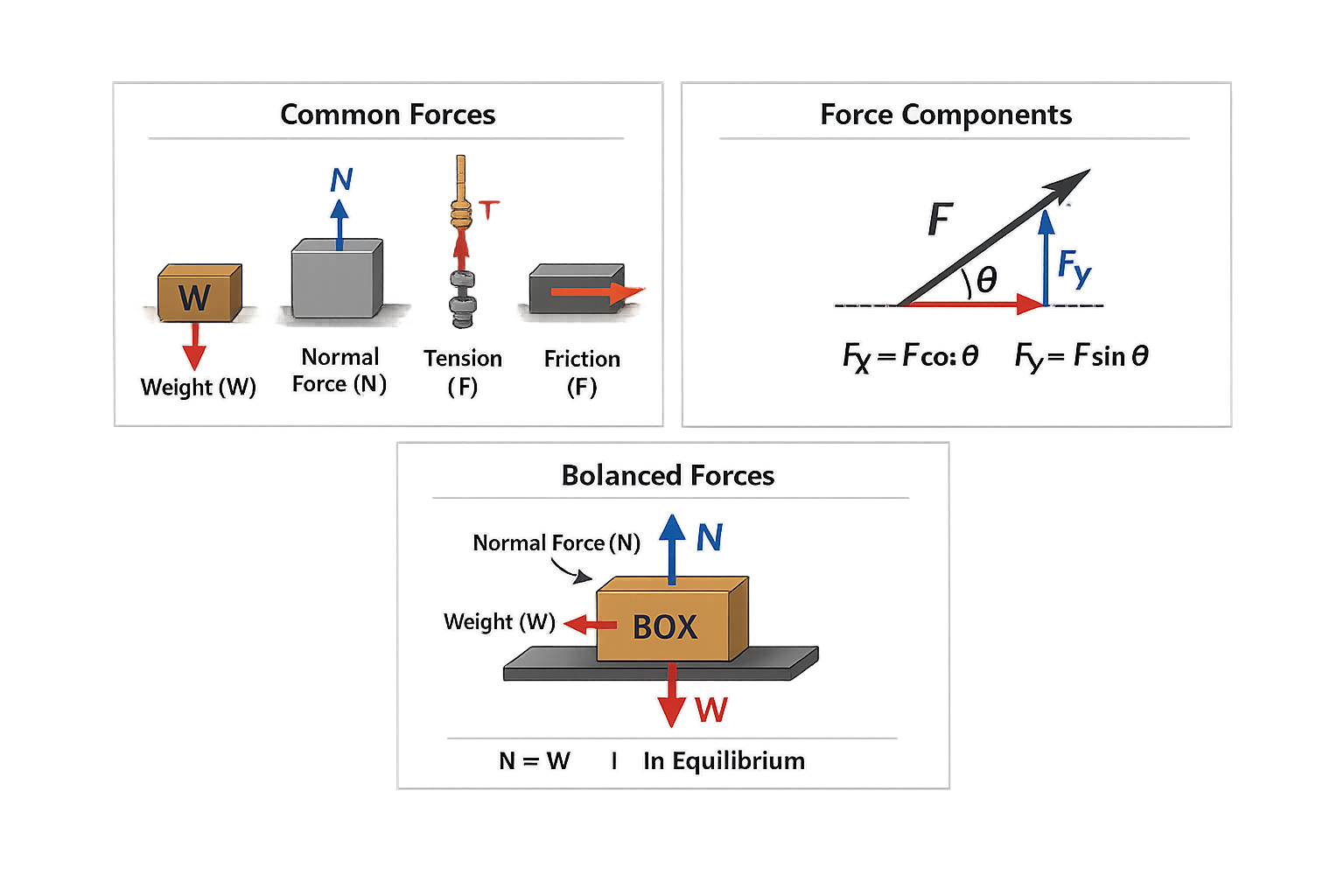

Common forces in statics include weight, normal force, tension, and friction.

2. Forces as Vectors

Because forces have direction, they are often broken into components. In two-dimensional problems, we usually split forces into:

• Horizontal components (x-direction)
• Vertical components (y-direction)

This allows us to analyze each direction independently, which simplifies solving equilibrium problems.

For example, a force at an angle can be separated into:

• A horizontal part
• A vertical part

This process is essential in nearly all statics problems.

3. Equilibrium

An object is in equilibrium when all forces acting on it are balanced. This means the object will either remain at rest or continue moving at a constant velocity.

There are two main conditions for equilibrium:

• Translational Equilibrium – no movement in any direction
• Rotational Equilibrium – no rotation about any point

In this lesson, we focus on translational equilibrium.

4. Equilibrium Equations

To solve statics problems, we use the following equations:

• ΣFx = 0 → the sum of all horizontal forces equals zero
• ΣFy = 0 → the sum of all vertical forces equals zero

These equations come directly from Newton’s laws and are the foundation of statics.

If either of these sums is not zero, the object will accelerate.

5. Balanced Forces

Balanced forces cancel each other out. This means:

• For every force in one direction, there is an equal force in the opposite direction

For example:

• An object sitting on a table has weight acting downward
• The table provides an equal normal force upward

Since these forces are equal and opposite, the object remains at rest.

6. Why This Matters

Understanding forces and equilibrium is essential in mechanical engineering because it allows engineers to:

• Ensure structures remain stable
• Prevent mechanical failure
• Design safe and efficient systems

Every structure or machine must satisfy equilibrium conditions to function properly.

Real World Applications of Statics

Statics is used whenever engineers need to make sure an object or structure stays stable. The main idea is that forces must balance so the object does not accelerate or fail.

1. Bridges

Bridges use statics because they must support their own weight, the weight of cars, and forces from wind or movement. Engineers analyze the forces acting downward and make sure the supports provide enough upward force to keep the bridge in equilibrium.

Statics concepts used:

• Weight: the bridge and vehicles create downward forces.
• Normal force/support force: bridge supports push upward.
• Equilibrium: ΣFy = 0 must be satisfied so the bridge stays stable.

2. Cranes

Cranes use statics when lifting and holding heavy objects motionless in the air. The load creates a downward weight force, while the cables provide upward tension forces. Engineers must make sure the forces balance so the object remains at rest and does not accelerate.

Statics concepts used:

• Tension: cables pull upward on the load.
• Weight: the lifted object pulls downward due to gravity.
• Equilibrium: ΣFy = 0 when the load is held motionless.

3. Shelves Mounted to a Wall

A wall-mounted shelf must support the weight of books, tools, or other objects placed on it. The shelf pushes down on the brackets, while the brackets and wall provide supporting forces. Engineers and designers use statics to make sure the shelf will not fall or bend too much.

Statics concepts used:

• Weight: objects on the shelf pull downward.
• Normal/support force: brackets push back against the load.
• Balanced forces: upward and downward forces must cancel.

4. Cars Parked on an Incline

When a car is parked on a hill, gravity pulls the car downward, but the road and friction help keep it from sliding. Because the surface is angled, the car’s weight can be thought of as having components in different directions.

Statics concepts used:

• Force components: weight can be split into parts along and into the hill.
• Friction: resists sliding down the incline.
• Normal force: the road pushes perpendicular to the tires.

5. Hanging Signs

A hanging sign is a simple example of statics. The sign’s weight pulls downward, while cables or chains pull upward through tension. If the sign is not moving, the upward tension forces balance the downward weight.

Statics concepts used:

• Weight: the sign pulls downward.
• Tension: cables pull upward.
• ΣFy = 0: vertical forces balance when the sign is motionless.

6. Ladders Leaning Against a Wall

A ladder leaning against a wall relies on friction and support forces to remain at rest. The floor provides an upward normal force, the wall pushes on the ladder, and friction helps prevent sliding.

Statics concepts used:

• Normal force: surfaces push back on the ladder.
• Friction: helps keep the ladder from slipping.
• Balanced forces: forces must cancel for the ladder to stay still.

7. Mechanical Supports and Brackets

Brackets are used to hold machines, shelves, pipes, and other parts in place. Engineers use statics to determine whether the bracket can safely support the forces acting on it without moving or failing.

Statics concepts used:

• Force direction: loads may act downward, sideways, or at angles.
• Vector components: angled forces can be split into x and y components.
• Equilibrium: all forces must balance for the support to remain stable.

8. Your Future Experiment Demonstrations

This section can later include your own recorded demonstrations, such as a hanging mass, a supported beam, a friction test, or a force balance setup. These experiments would show how the same statics ideas from the lesson appear in real physical systems.

Statics concepts used:

• ΣFx = 0: horizontal forces balance.
• ΣFy = 0: vertical forces balance.
• Weight, normal force, tension, and friction: the core forces from the lesson.

Statics Experiment Video

This experiment demonstrates force equilibrium using pulleys, masses, and a force balance setup.

Objective

Demonstrate how forces balance when an object is in equilibrium.

Concepts Demonstrated

• ΣFx = 0
• ΣFy = 0
• Tension
• Weight
• Force Equilibrium
